Important and interesting - please read:

The ideal room heating

Block-type thermal power generation: The roof air collector Please read carefully - important for understanding floor heating:

The benefits of the 3-wire heating mat: laying of the heating mat (animated sequence), timed heating of the floor (table), electricity consumption (cost calculation), please Click Here:

In each bathroom: 200 Watt 1m² with 531 Instset thermostat including delivery, from EUR 179.80

The anti-chill floor system: From EUR 63.80 for 1m² - 2 metre lengths from 120 Watt/m², 160 Watt/m², 200 Watt/m², 300 Watt/m², up to 500 Watt/m².

* 2 standard widths 0.3m & 0.5m * With PE lead (wire mesh coating, shielding) * High quality * Low electricity costs * Comes complete with thermostat & sensor protection tube * With Laying instructions & Electrical connections diagram (very easy)!



Programme free of charge: PDF format Download: To save the information in a compact form or to print it - click the appropriate "Info" button to the right: For Word 6.0 please click here:

Click:  - - Word documents

Still unsure? Still some remaining questions?

EASY FINDER  How? Where? What? & Why?

FAQ Questions & Answers:
Find the ideal  underfloor heating mat and thermostat for your own particular application:
Heating in the bathroom, conservatory, living room or any other room. Click here:


More Info and Animation!



Assembly and Instructions:    as htm       or as WORD.DOC   www.soldron.de   in English

Montage- et Mode d'emploi:    htm      WORD.DOC www.soldron.de   français

Feedback:Comments and opinions from customers about Soldron.

Applicationn areas for heating system: * Tiled stove heating 500 Watt/m² * Bathrooms and kitchens * Selling areas, e.g. butchers * Offices, wall heating, marble heating * For low floor heights * Aesthetic reasons (no radiators) * Renovation of old buildings (e.g. dry floors) * Partial floor heating for seating area * Conservatory anti-chill (frost protection)

Benefits &of the underfloor heating system: * Quick and easy to lay * Rapid heating to desired temperature (bathroom in morning) * Controlled by timer thermostat * Extremely thin heating mats, 2 mm, 3 mm and 4 mm thick * CE safety mark, low-cost, maintenance-free * Conforms to international standards limits etc. * Warm feet, cool head * Pleasant house temperature * Lower temperature possible through high heat radiation



Underfloor Heating

Bear in mind that once you have laid tiles or other flooring types it is no longer possible to install underfloor heating or anti-chill mats.

Test your bathroom floor. How does it feel?
Cool and uncomfortable?

But there is a solution.

Plan for the future!
With prices starting at under EUR 50/m² from 2 m², maybe you too should consider treating yourself to this added comfort!

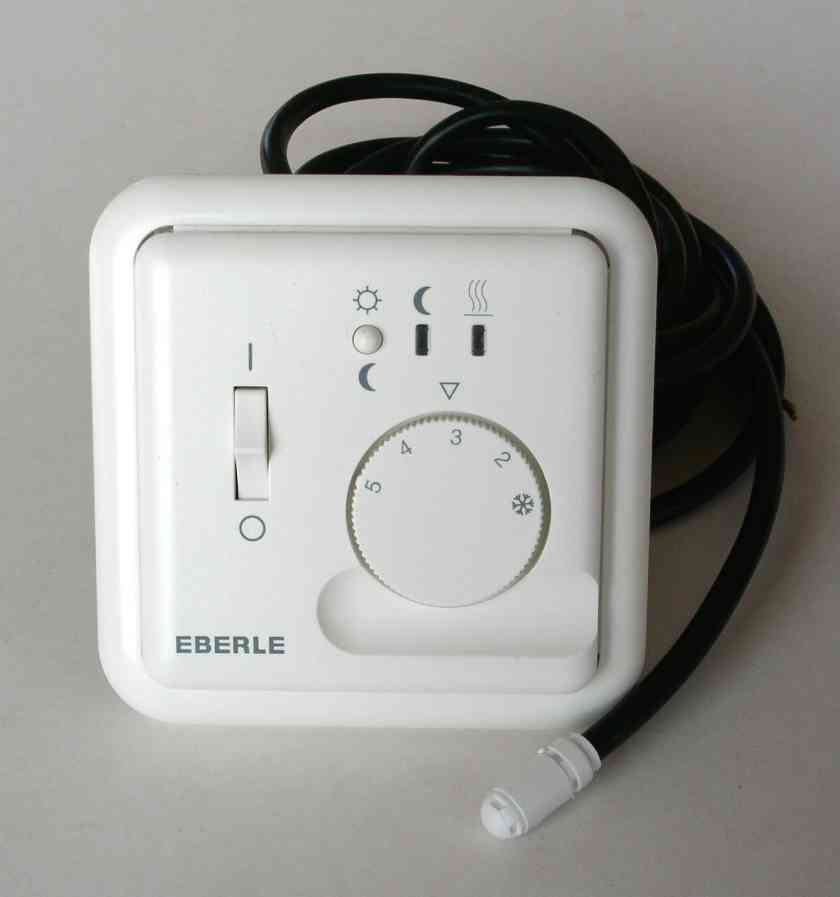

In conjunction with an Eberle timer thermostat programmed to match your precise needs, costs are kept low!



The high quality heating mats:

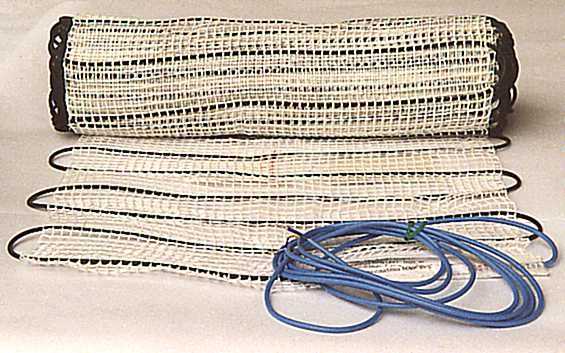

With 4m cold lead (can be shortened or extended):

electric underfloor heating instead of a standing or a wall-mounted convector heater

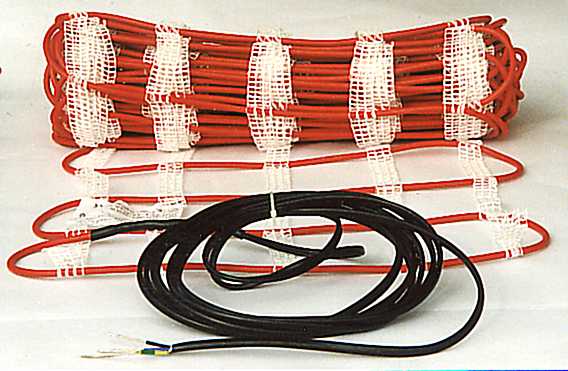

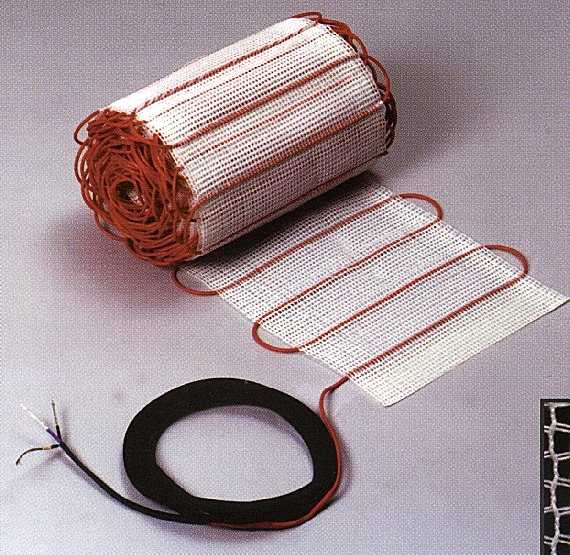

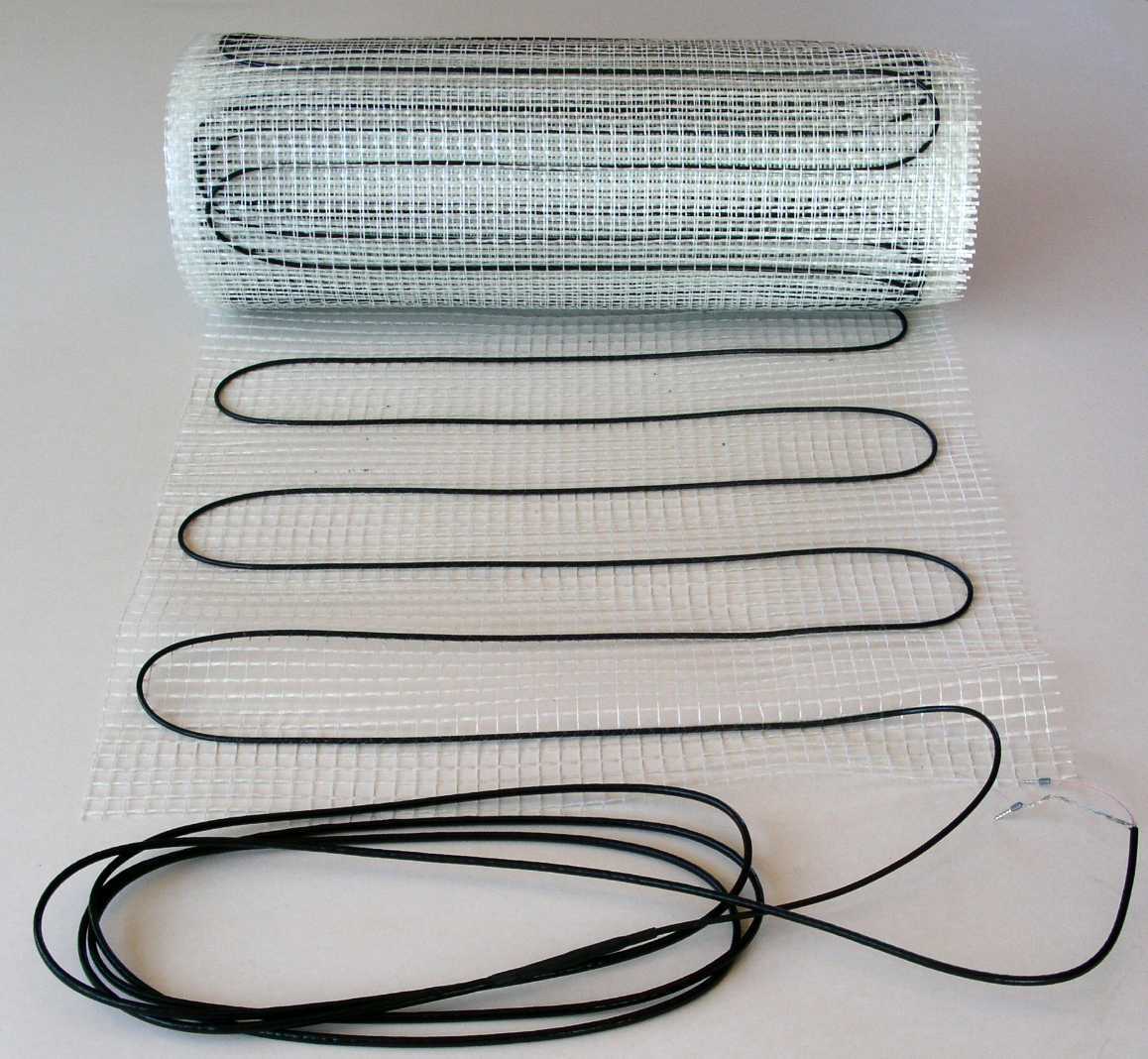

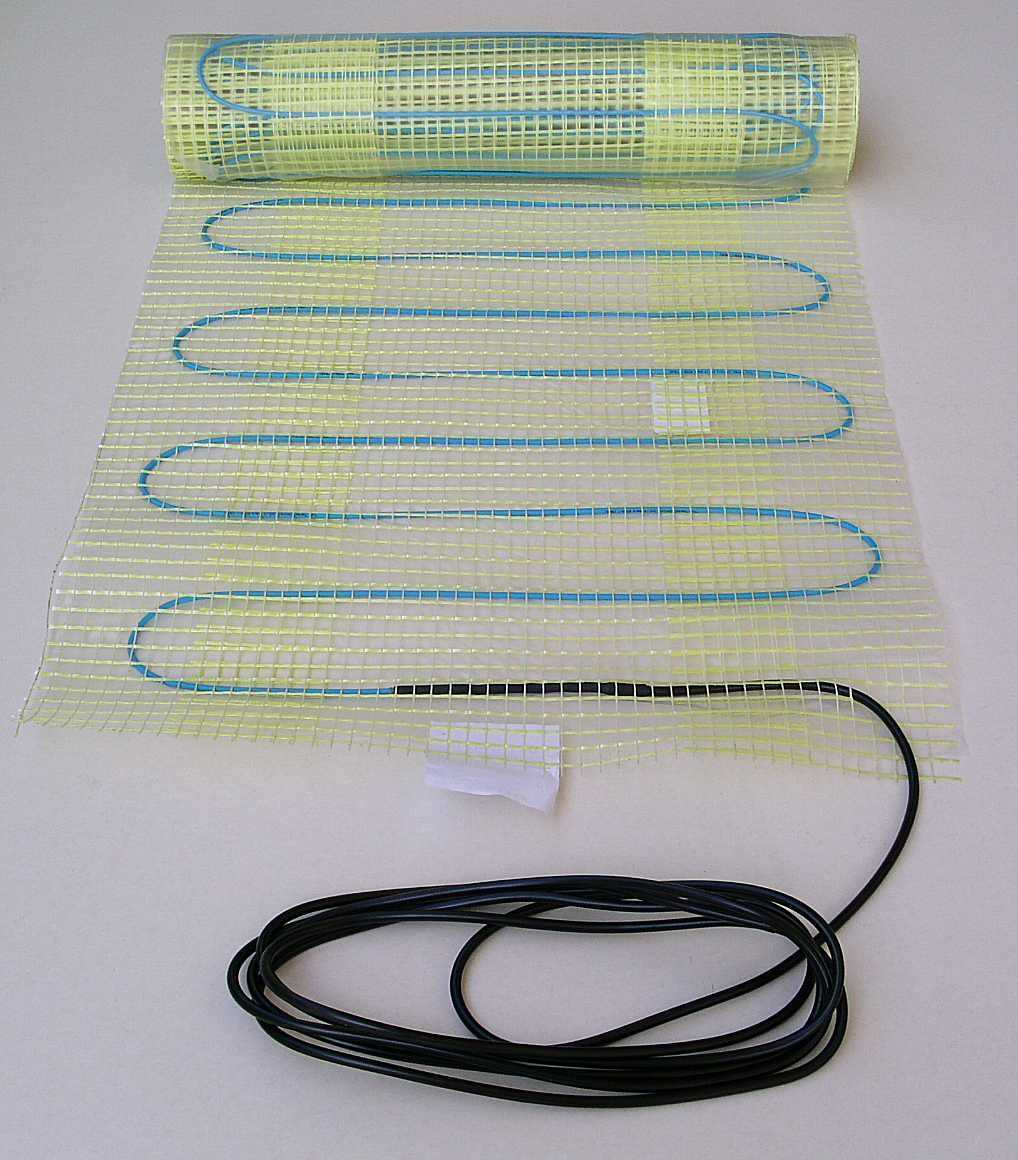

Specially designed for quick and simple laying in the bathroom, the rapid and powerful WT3L with 160 Watt/m² output. Possibly in combination with a rapid heater. All 3 cold lead connection cables are on one side.   The heating wire forms a complete loop in the heating cable; this makes laying simpler as the other end of the cold lead cable does not need to be fed back to the start point. The magnetic fields cancel each other out! The electric field is screened by the protective wire coating. No normal electrical installation cable offers this protection. Available in 0.5m and 0.3m widths.   The WT3L has a very low profile of just 3mm to 3.5mm. Heating mats with cotton mesh can be compressed lengthways if necessary.	WT3L electric  Undertile Heating

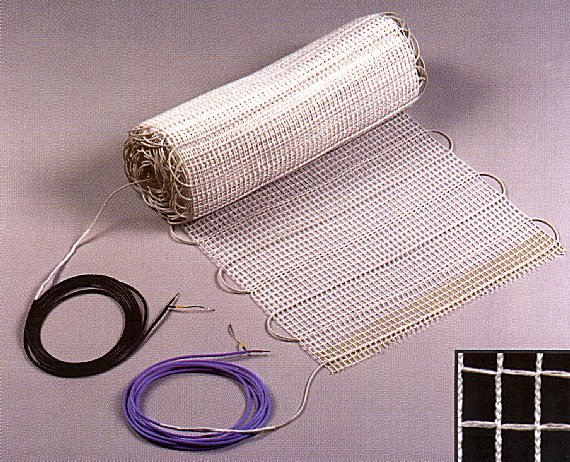

If the installation height must be kept to a minimum FH TWIN- Protection class II - All 3 cold lead connection cables are on one side.   Simple to lay: As a result of the protective mesh the heating mat lies very flat on the floor, yet it cannot be compressed lengthways.   Undertile Heating  The heating wire forms a complete loop in the heating cable; this makes laying simpler as the other end of the cold lead cable does not need to be fed back to the start point. The magnetic fields cancel each other out! The electric field is screened by the protective wire coating. No normal electrical installation cable offers this protection. 0.5m width at 160 Watt/m². in extra thin version with heating cable thickness of just 2,5mm - 2.9mm This saves semi-flexible adhesive when filling and yields benefits in terms of floor height where this is restricted e.g. by doors. Under tile Heating	FH TWIN thin-bed under tile heating mat Undertile Heating  NB! New: Special manufacture 160 W/m²: FH TWINprotection class I - All 3 cold lead connection cables are on one side. Any areas are possible, e.g. "round showers", "spiral-shaped showers" "diagonal bathtubs" L-shapes, U-shapes, other shaped areas or areas with the connection cable in the centre of the heating area etc. as customised products based on your drawings, from 0.5m² to 10m² or more. Please fax us your floor layout plan Price +200% extra charge for 1m², 10% reduced extra charge on FHT prices for each additional square metre minus special discount, e.g. set discount e.g. for 1m², instead of EUR 69.80 + 200%, EUR 209.40 7m² instead of EUR 406.00 + 130% then EUR 933.80
The benefits of the 3-wire heating mat: laying of the heating mat (animated sequence), timed heating of the floor (table), electricity consumption (cost calculation), please Click Here:	Like warm wave heating

New R-FH-Twin T2 QuickNet Underfloor Heating:

Electric thin-bed heating

Electric under floor heating also possible, low voltage tile heating 36 V

Under tile Heating  For larger areas (or e.g. dryfloor decking Fermacell plates,  Soporo plates  Majestic plates Ultrament plates Domobau plates or Wedi plates) , for constant temperatures  in living areas the well-balanced WTN at 120 Watt/m² . Available in 0.5m width Distance between heating coils 6cm The WTN has a very low profile of just 3mm to 3.5mm. If the installation height must be kept to a minimum, FH thin bed underfloor heating mat protection class I at 160 Watt/m². As 0.5m wide model  in extra thin version of only approx. 2,5-2,7mm heating cable thickness! This saves semi-flexible adhesive when filling and yields benefits in terms of floor height where this is restricted e.g. by doors. Simple to lay: As a result of the protective mesh the heating mat lies very flat on the floor, yet it cannot be compressed lengthways.  EPB- protection class I: (on request) With protection class 1, specially for sanitation rooms such as saunas, bathrooms, showers etc. Double insulation and double shielding. 160 Watt/m², approx.2.5mm thick, 30cm wide. A 4m cold lead connection cable on each side: On cotton mesh. Undertile Heating

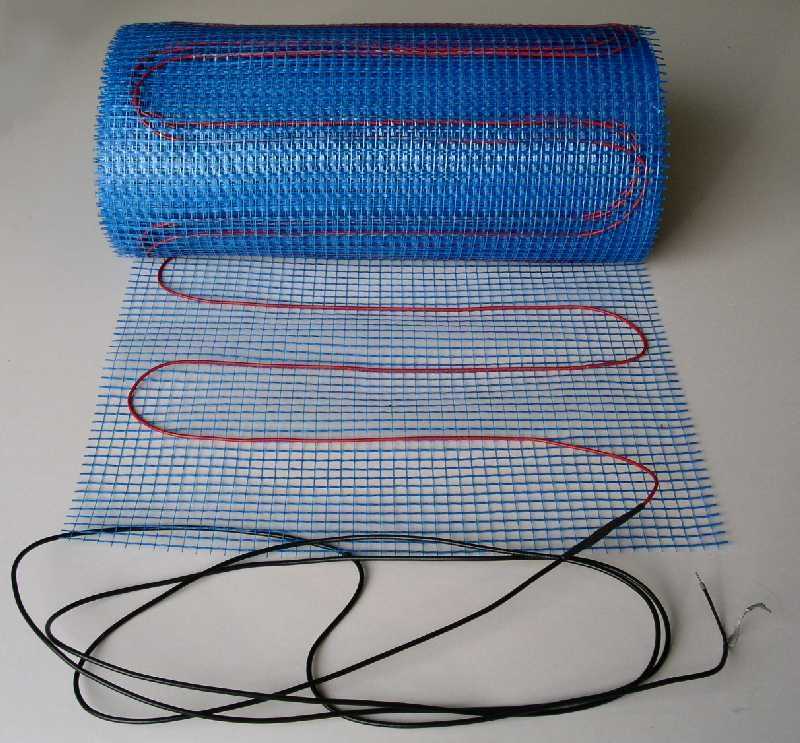

WTN underfloor heating FH thin-bed heating mat WTEPB - sanitation room undertile heating:

Electric thin-bed heating

Undertile Heating

Undertile Heating

New - without semi-flexible adhesive Laminate-heating, parquet heating :

Electric laminate/parquet heating

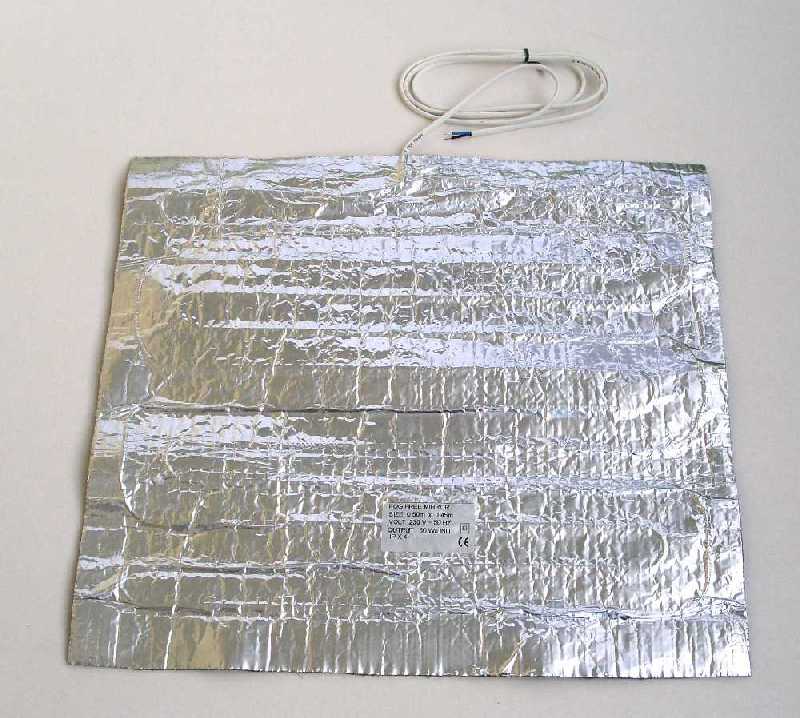

Electric mirror heating

Floor heating, electric heating technology

Specially designed for: Also for conservatories (where no thermal insulation beneath), and outdoor areas (to keep free of snow and ice), or for bathrooms in older buildings with no thermal insulation beneath the sub floor or where the sub floor is thicker than 5cm. The equally low-cost yet high-power TF/R 3-L at300 Watt/m². Please phone for details. The durable PVC coating gives added strength. All three connection cold leads attached at one end. Thickness of 6mm. With 4m cold lead (can be shortened or extended):  electric Undertile Heating    On request:     300 Watt/m² TF/R heating mat from 2-8m², 0.5m wide, 230 Volt. 300 Watt/m² TF/R heating mat from 2-14m², 0.5m wide, 400 Volt. Ceiling heating, 150 Watt/m² from 0.75-1.5m², 0.5/0.6m wide, 230 Volt. Parquet heating, 150 Watt/m² from 1-6m², 0.5 wide, 230 Volt. Only with parquet heating do dummy elements need to be laid at the positions where no parquet heating is fitted!

For all heating mats:  The heating wires are totally insulated and also feature special screening (in the form of a wire mesh, similar to a co-axial TV cable). It is also earthed and enclosed in a protective coat, making it FI-compatible!



Undertile Heating




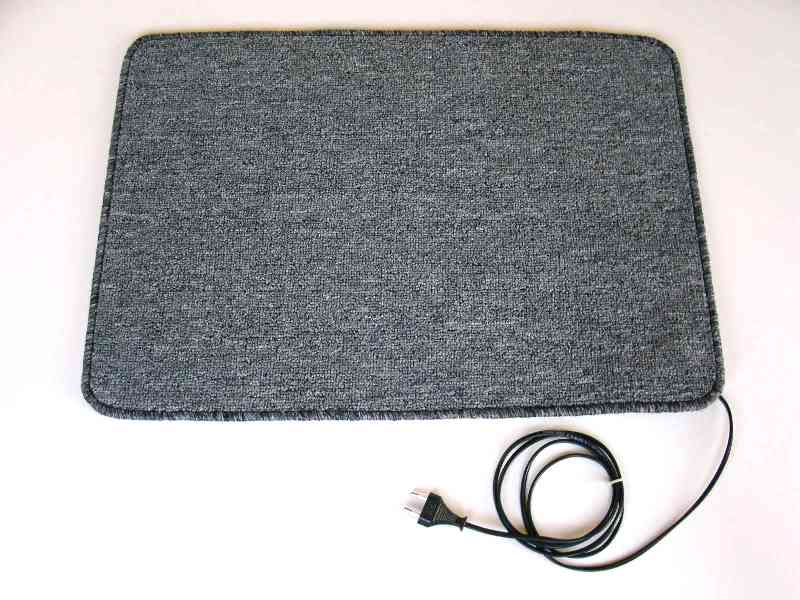

The ideal gift for birthdays or Christmas etc. When sitting in front of the computer in the cellar When watching TV in the mobile home - the foot heating mat or Fireplace bench heating Church organ bench heating Church heating Corner seat heating Office heating mat  heated foot mat 0.25m x 1.0m 50 Watt 0.4m x 0.6m 75 Watt 0.6m 0.5m x 0.7m 65 Watt  or 0.6m x 0.9m 95 Watt 7mm thickness, approx. 2m cable Heated rubber mat Rubber heated mat, rubber mat 0.5m x 0.5 m 50 Watt   Heated carpet underlay ("heated carpet - carpet heating") 1.30m x 1.80m 480 Watt 2mm thickness, approx. 4m cable More info

More info

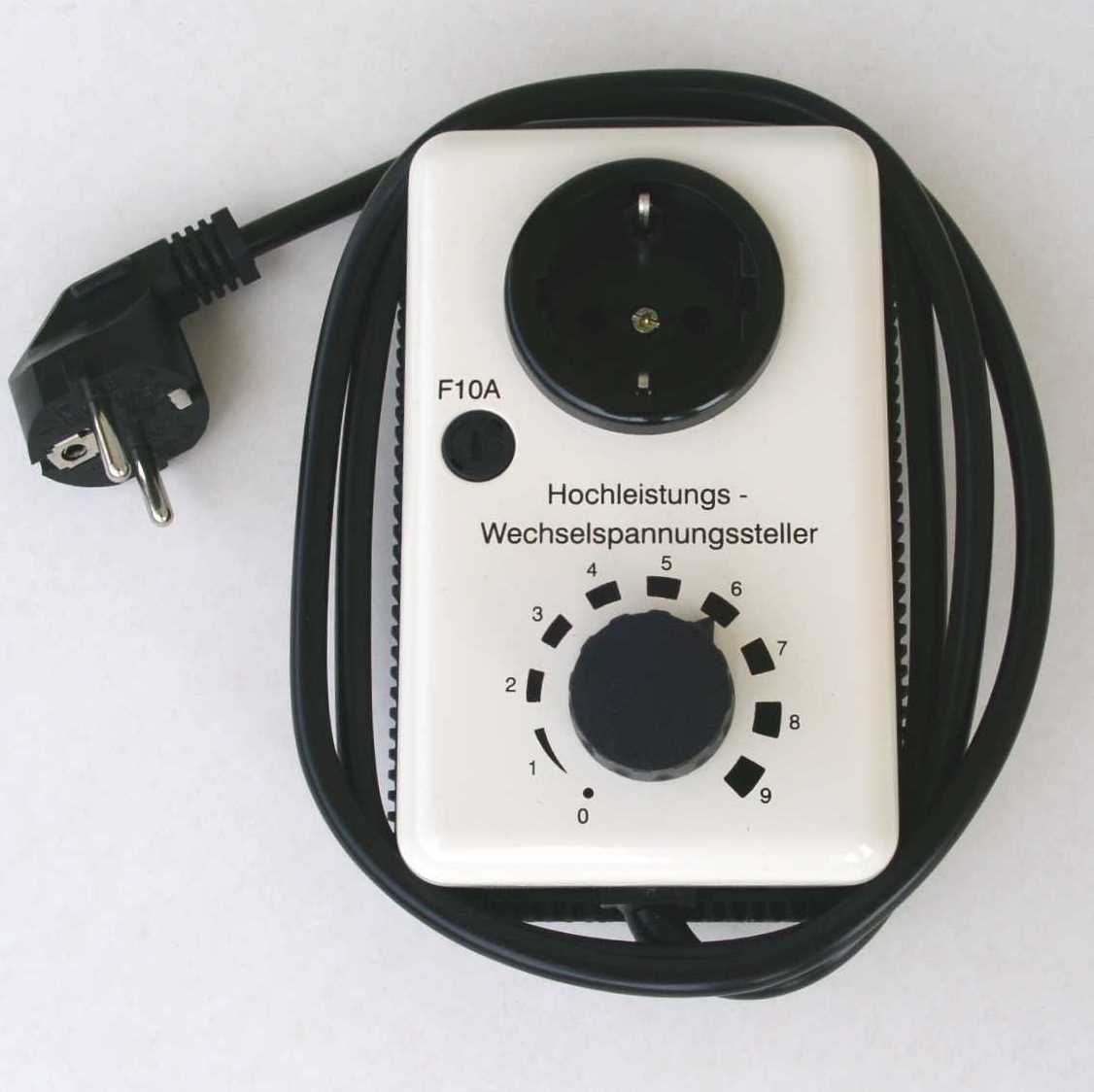

Soldron heating regulator Dimmer  Socket dimmer N2003S :  AC voltage control element Rotation controller Power control element Power regulator Speed regulator Motor controller Motor control element AC voltage regulator The high-power heating power regulator for foot & office heating mats and especially for the WTU 480 underlay heating system Simply plug between the socket and heating mat and turn the dial to adjust the heating power to suit your own personal comfort level. Switching power: powerful 2000 Watt for ohmic appliances such as heating mats, halogen lamps, spot lamps. For infinite setting, regulating or controlling of ohmic and inductive loads such as Spotlights Light control systems Garden pumps Pond pumps Electric tools Heaters (not heating fans) Vibration conveyors Universal & shaded-pole motors Angle grinders etc. Ventilators More info

More info

The benefits of the 3-wire heating mat: Laying the heating mat (animated sequence). Timed heating of floor (table), Electricity consumption (cost calculation), pleaseClick here:   Find a low-cost power provider (Germany): http://stromtabelle.de/rechner.htm http://www.stromtip.de http://www.billig-strom.de

A brief example to explain electricity consumption costs! bathroom heating: At a power cost of approx. € 0.15/kWh and a heating period of 30 minutes for taking the chill off the bathroom floor, this would result in total output of 600 Watt/unit, i.e. 4.5 cents per day. The heating mats must first use all their power to warm up the cold sub floor and the tiles to 27°C. In this case, the system would probably heat for the entire duration. (Warm-up) Assumes thermal insulation beneath sub-floor. Second example: At a power cost of approx. € 0.15/kWh and a heating period of 300 minutes for taking the chill off the living room floor, this would result in total output of 1600 Watt/unit (10m²), i.e. 15 cents per day. We assume that the living room is heated to a temperature of 22°C by a different heating source, and that the floor is warmed to 24°C. The heating mat then only needs to replace 200 Watts for 10m² "loss-compensation" (heat which escapes into the living room). (Maintaining temperature) Assumes thermal insulation beneath sub-floor.

Mounted types:



AP mounted thermostat for electric under floor heating and anti-chill systems. The floor temperature is measured by the NTC sensor and regulated by means of the EB 52521/31 electronic thermostat. The sensor of the thermostat is laid in the floor beneath the heating wires in the sensor protection tube, directly beneath the heating layer. The floor temperature can be set on the thermostat to meet your personal requirements and those of the particular room (living room or bathroom) . At 120 Watt/m² 27m² possible At 160 Watt/m² 20m² possible At 200 Watt/m² 16m² possible Larger areas possible with power protection! To measure under floor temperature 16 A switched current 3.3 kW switching power 4m sensor cable (can be shortened or lengthened) Mains switch and pilot lamp "Thermostat demands heating" Range confinement in adjustment button

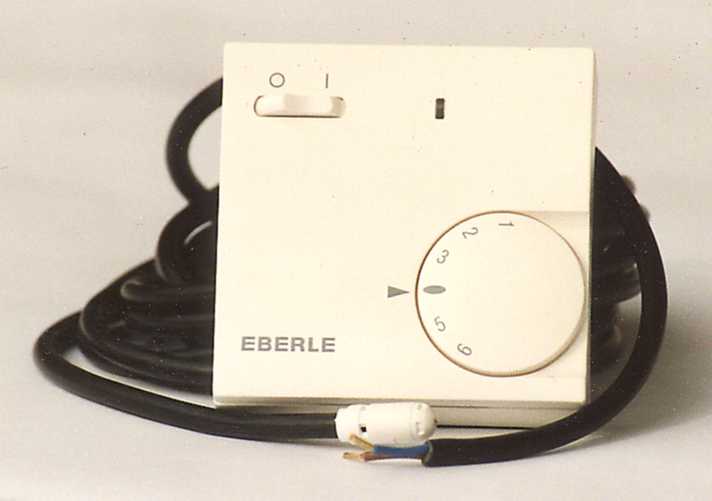

Simplicity itself: but switches a powerful 16 Amps simply set the temperature turn on or off EB 52531

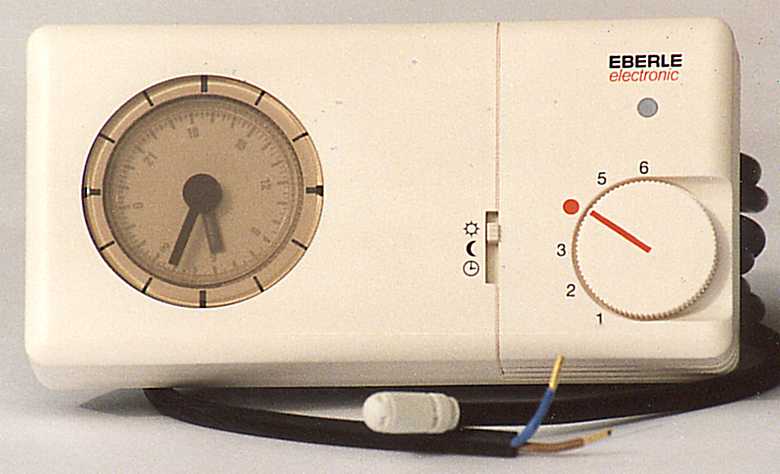

AP mounted thermostat for electric under floor heating under tile heating and anti-chill systems.   No loss of comfort or convenience but highly economical because timed operation is ensured by the special EASY 3 ft timer thermostat. The unit should be set so that the heating is automatically switched on 30 minutes before use by the electronic thermostat. The unit switches off again automatically during or after use, preventing any unnecessary heating. You can also switch the heating on and off outside the times set on the timer, of course. At 120 Watt/m² 27m² possible At 160 Watt/m² 15m² possible At 200 Watt/m² 12m² possible Larger areas possible with power protection! With quartz clock for daily EASY 3 ft or weekly program 52528 Range confinement in adjustment button To measure floor temperature 10A switched current 4m sensor cable (can be shortened or lengthened) 2.4 kW switching power

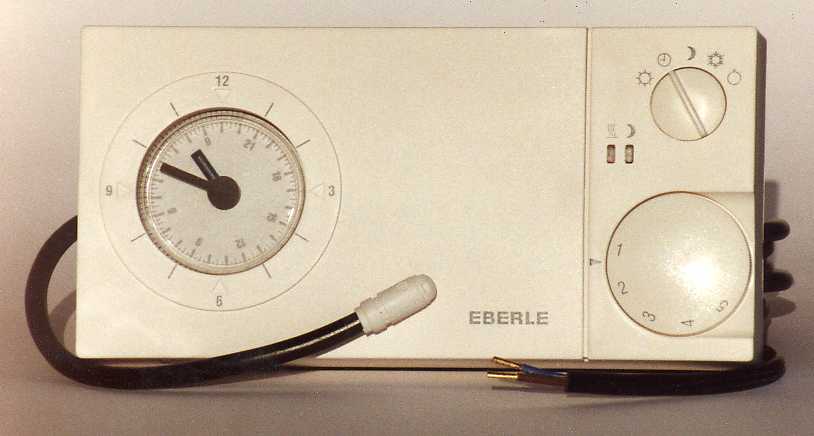

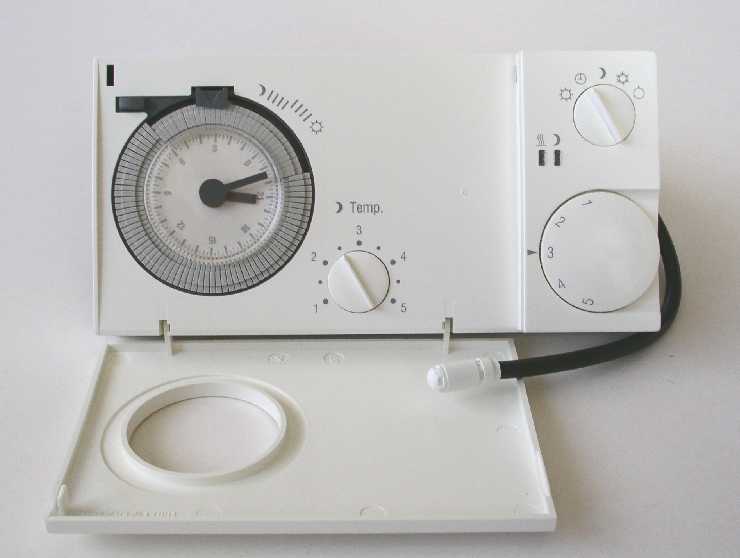

Simple operation: Daily timer thermostat with switch rider simply set the temperature and turn on or off, or use the timer EB EASY 3 ft or Acrobat Reader Technical Specifications in PDF format: EB 52527 (old)

Embedded models:

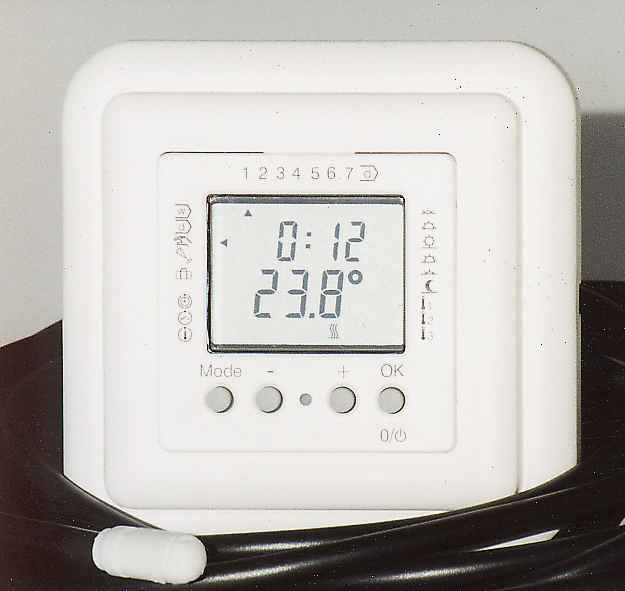

New: EB 52535 Instant 8 thermostat for electrical underfloor heating and under floor heating systems or room temperature thermostat for electrical floor heating No loss of comfort or convenience but highly economical because timed operation is ensured by the special EB 52535 FRe Instat 8timer thermostat. The unit should be set so that the heating is automatically switched on 30 minutes before use by the electronic thermostat. The unit switches off again automatically during or after use, preventing any unnecessary heating. You can also switch the heating on and off outside the times set on the timer, of course. At 8 Amps, only smaller areas are possible. At 120 Watt/m² 15m² possible At 160 Watt/m² 11m²possible At 200 Watt/m² 9m² possible Larger areas possible with power protection!     Wide range of setting options, please read carefully! Features:   To measure floor temperature 8 A switched current 1.8 kW switching power 4m sensor cable (can be shortened or lengthened) Timer thermostat for three applications: room temperature regulator, floor temperature thermostat and room thermostat with floor temperature limiter Weekly program and separate daily program Five factory preset programs Free choice of 6 times for each day, with block-building An extra day program (for special occasions such as holidays and national holidays) 3 temperature settings (comfort, standard, night) Ready for immediate use with standard program Manual operation for: changing temperature up to next switching time or permanent change of temperature Smart heating curve (the temperature is reached at the set time)  Control characteristic curve ( 2-point or fuzzy regulator PID similar to PWM Clear LCD display, simultaneously showing: room temperature, time, day, mode, time zone, target temperature range Display can be switched from room temperature to target temperature Come/go function ON/OFF switch Holiday function (frost protection) Unauthorised use protection Manual operation and party function Valve protection function (with hot water heating) Choice of two regulation modes, therefore suitable for almost all types of heating Heating - Cooling switching (with air conditioner) Simple, menu-based operation using 4 keys Frost protection for up to 199 days Operating hours meter Remote sensor operation possible Colour - pure white, similar to RAL 9010 Assembly only possible in UP box of 55mm diameter Underfloor Heating

The low-cost all-rounder:  Daily/weekly timer (programs) With the advantage of being able to switch from floor to room temperature thermostat (floor temperature limited to programmed value)  Wide range of settings available!             EB 52535  INSTAT8   To detailed description and assembly/operating instructions for INSTAT8:   Wiring: INSTAT8 simplified connection diagram and rear view:   Assembly and operating instructions in WORD95 format: or  Acrobat Reader    Technical Specifications in PDF format: Assembly and operating instructions in PDF format: Manual de instruccions y de instalacion Instat 8 Istruzioni per L´uso e l´installazione Instat 8 Tech Data User Manual Mode d'emploi dt d'installation

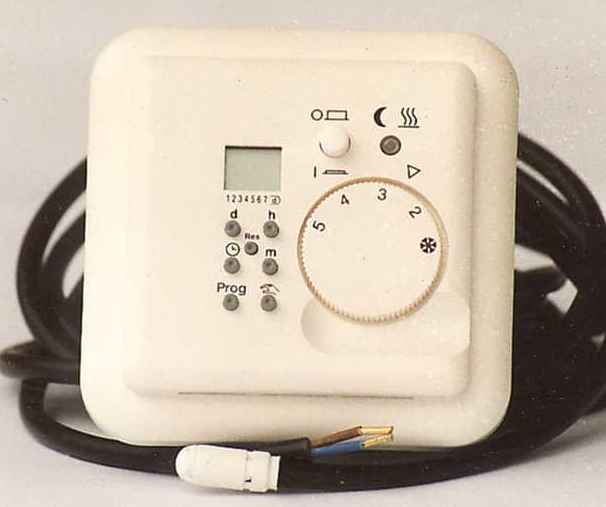

EB 52512 thermostat for electric under tile heating and anti-chill systems. No loss of comfort or convenience, yet highly economical because timed operation is ensured by the EB FRe 52512 timer thermostat. The unit should be set so that the heating is automatically switched on 30 minutes before use by the electronic thermostat. The unit switches off again automatically during or after use, preventing any unnecessary heating. You can also switch the heating on and off outside the times set on the timer, of course. At 120 Watt/m² 20m² possible At 160 Watt/m² 15m²possible At 200 Watt/m² 12m² possible Larger areas possible with power protection! For measuring Floor temperature 10A current 2.4 KW breaking capacity 4m sensor cable (can be shortened or lengthened) Timer switch for reducing temperature to energy-saving 15 or 19°C Optional: Weekly or daily programcan be selected (with the same thermostat) Range confinement in setting button Block building possible 4/6 on and 4/6 off times Manual operation Holiday timer Assembly only possible in UP box of 55mm diameter

The balanced system - easy to operate: Daily timer thermostat Weekly timer thermostat Simply set the temperature and turn on or off, or use the timer EB 52512 To detailed description and assembly/operating instructions for EB 52512: Wiring: EB 52512 simplified connection diagram and rear view: or Acrobat Reader Technical Specifications in PDF format: Assembly and operating instructions in PDF format:



Underfloor Heating

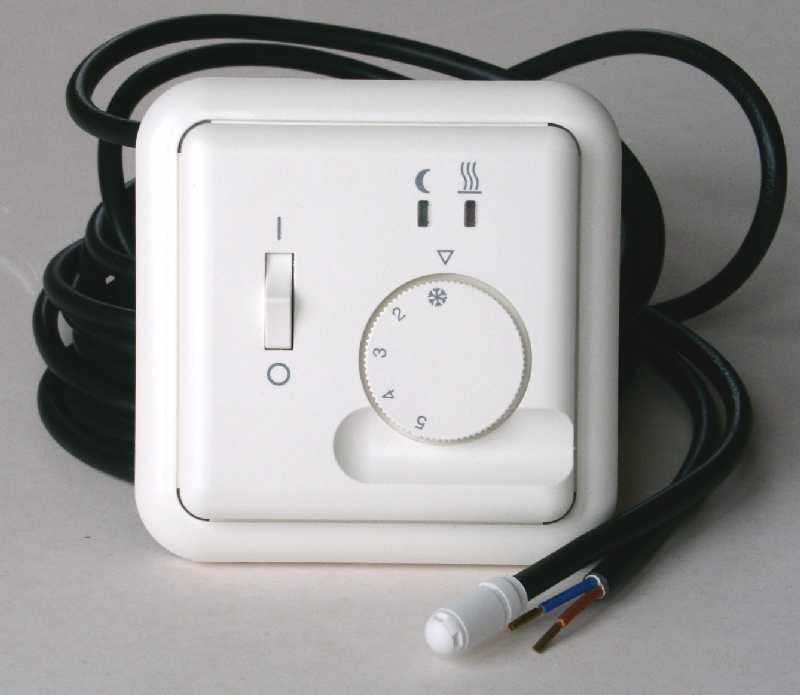

EB F2A thermostat for electric underfloor heating and anti-chill systems. The floor temperature is measured by the NTC sensor and regulated by means of the EB F2A electronic thermostat. The sensor of the thermostat is laid in the floor beneath the heating wires in the sensor protection tube, directly beneath the heating layer. The floor temperature can be set on the thermostat to meet your personal requirements and those of the particular room (living room or bathroom) . At 120 Watt/m² 30m² possible At 160 Watt/m² 22,5m²possible At 200 Watt/m² 18m² possible Larger areas possible with power protection! To measure the floor temperature 16 A switched current 3,6 kW switching power 4m sensor cable (can be shortened or lengthened) Mains switch and pilot lamp "Thermostat demands heating" Range confinement in setting button

Simple operation: simply set the temperature and turn on or off EB F2A oder  Acrobat Reader  F2A F2T Technical Data in PDF-format:  Operating in PDF-format:

Underfloor Heating

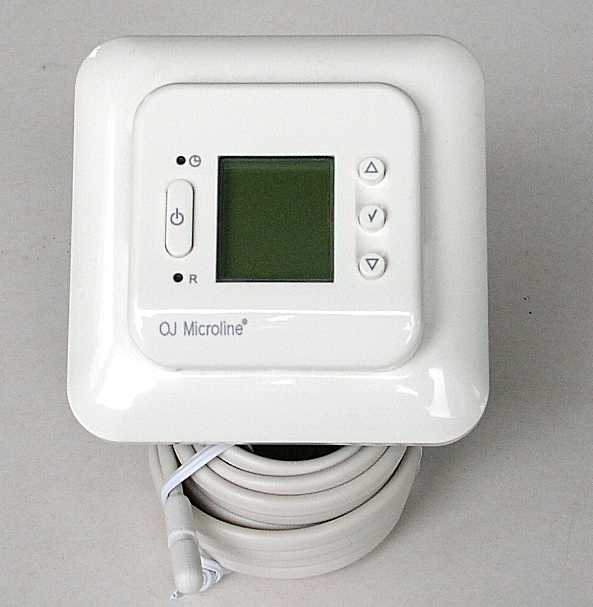

OJ OCC2D2 thermostat or electrical underfloor heating and under tile heating systems or room temperature thermostat for electrical floor heating No loss of comfort or convenience but highly economical because timed operation is ensured by the special OJ OCC2D2timer thermostat. The unit should be set so that the heating is automatically switched on 30 minutes before use by the electronic thermostat. The unit switches off again automatically during or after use, preventing any unnecessary heating. You can also switch the heating on and off outside the times set on the timer, of course. . At 120 Watt/m² 30m² possible At 160 Watt/m² 22,5m²possible At 200 Watt/m² 18m² possible Larger areas possible with power protection! To measure the floor temperature 16 A switched current 3,6kW switching power Floor- or Roomthermostat (only from Soldron) Timer thermostat for three applications: room temperature regulator, floor temperature thermostat and room thermostat with floor temperature limiter 4 Event Timer 4m sensor cable (can be shortened or lengthened) Mains switch and pilot lamp "Thermostat demands heating" Range confinement in setting button

Simple operation: Daily/weekly timer (programs) With the advantage of being able to switch from floor to room temperature thermostat (floor temperature limited to programmed value)  Wide range of settings available! OJ OCC2 OCD2  Ambient and / or Floor Sensing You get 2 function in one thermostat (Floor or Room) only from Soldron by other dealer you must decide between OCC2 (floor) and OCD2 (room) oder  Acrobat Reader  OCC2D2 Technical Data in PDF-format:  Operating in PDF-format:

Undertile Heating

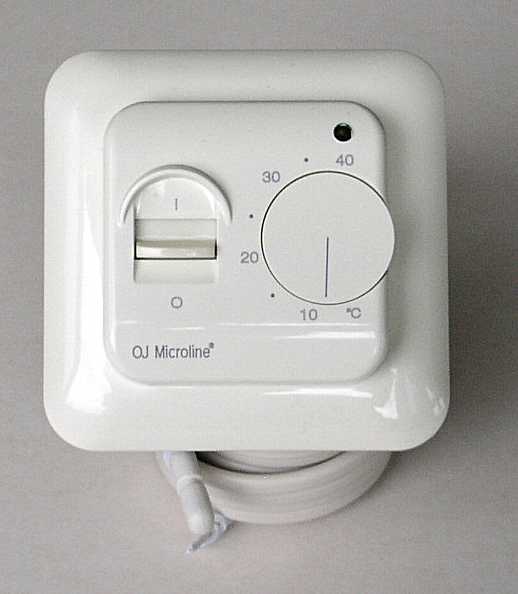

OJ OTN thermostat for electric under floor heating and anti-chill systems. The floor temperature is measured by the NTC sensor and regulated by means of the OJ OTN F2A electronic thermostat. The sensor of the thermostat is laid in the floor beneath the heating wires in the sensor protection tube, directly beneath the heating layer. The floor temperature can be set on the thermostat to meet your personal requirements and those of the particular room (living room or bathroom) . At 120 Watt/m² 30m² possible At 160 Watt/m² 22,5m²possible At 200 Watt/m² 18m² possible Larger areas possible with power protection! To measure the floor temperature 14 A switched current 3,2 kW switching power 4m sensor cable (can be shortened or lengthened) Mains switch and pilot lamp "Thermostat demands heating" Range confinement in setting button

Simple operation: simply set the temperature and turn on or off OJ OTN oder  Acrobat Reader  OTN Technical Data in PDF-format:  Operating in PDF-format:

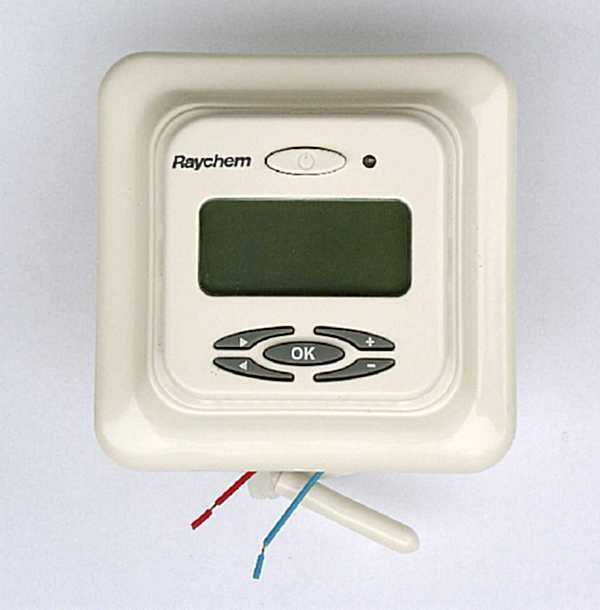

New: Raychem TC T2 DigiTemp PLUS° o loss of comfort or convenience but highly economical because timed operation is ensured by the special TC DigiTemp PLUS° timer thermostat. The unit should be set so that the heating is automatically switched on 30 minutes before use by the electronic thermostat. The unit switches off again automatically during or after use, preventing any unnecessary heating. You can also switch the heating on and off outside the times set on the timer, of course. . At 120 Watt/m² 30m² possible At 160 Watt/m² 22,5m²possible At 200 Watt/m² 18m² possible Larger areas possible with power protection! To measure the floor temperature 16 A switched current 3,6kW switching power Floor- or Roomthermostat (only from Soldron)     Automatic sensing of sensor mode (floor or room) Manual ON/OFF by 2-pole main power switch Blue back light display Built-in timer function–4 selectable pre-programmes–1 user specific programme daily editable in time blocks of 30 minutes Adaptive function in order to reach the desired temperature at the desired time Booster function for fast heat up (+5°C for max 2 hours) Read-out of actual floor sensor temperature Monitoring of floor or room sensor. In the event of failure of anactive sensor, the underfloor heating system is switched off Possibility to lock the settings eg public buildings Busch-Jaeger Reflex SI alpinweiß, poliert Merten Atelier 3972 19, polarweiß Merten M1 3972 18 RAL 9010, poliert Eljo  Trend Elko  Rs, L57 1 Gira ST55 Standart,  E2 Jung AS ect. Underfloor Heating

Simple operation: Daily/weekly timer (programs) With the advantage of being able to switch from floor to room temperature thermostat (floor temperature limited to programmed value)  Wide range of settings available!       TC Raychem Ambient and / or Floor Sensing   T2 DigiTemp PLUS° Timer Thermostat      Raychem T2 TC   oder  Acrobat Reader  TC Technische Daten im PDF-Format:  Bedienung im PDF-Format:    Tech Data: User Manual Englisch, Deutsch, Francais, Nederlands, Norsk, Svenska,  Dansk, Soumi, Polski, Russisch:

Undertile Heating

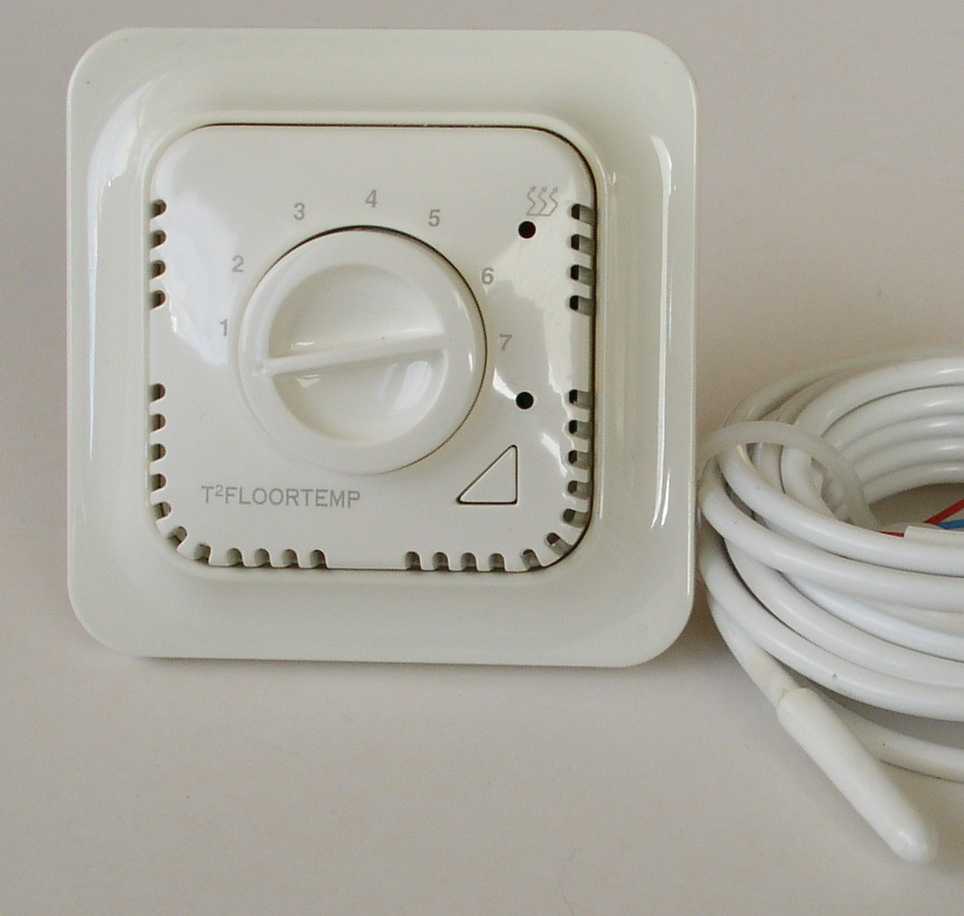

T²FloorTemp PLUS° thermostat for electrical undertlie heating and floor heating systems or room temperature thermostat for electrical underfloor heating The floor temperature is measured by the NTC sensor and regulated by means of the T²FloorTemp PLUS electronic thermostat. The sensor of the thermostat is laid in the floor beneath the heating wires in the sensor protection tube, directly beneath the heating layer. The floor temperature can be set on the thermostat to meet your personal requirements and those of the particular room (living room or bathroom) . At 120 Watt/m² 25m² possible At 160 Watt/m² 19m²possible At 200 Watt/m² 15m² possible Larger areas possible with power protection! To measure the floor temperature 13 A switched current 3.0 kW switching power 3m sensor cable (can be shortened or lengthened) Mains switch and pilot lamp "Thermostat demands heating" For floor sensing or room sensing applications based on 3 m floor sensor and built in room sensor Manual ON/OFF by 2-pole main power switch Setback function (–3.5°C) via remote timer Booster function for fast heat up (+5°C for max 2 hours) Read-out of actual floor sensor temperature Monitoring of floor or room sensor. In the event of failure of an active sensor, the underfloor heating system is switched off Possibility to lock the setting eg public buildings Busch-Jaeger Reflex SI alpinweiß, poliert Merten Atelier 3972 19, polarweiß Merten M1 3972 18 RAL 9010, poliert Eljo  Trend Elko  Rs, L57 1 Gira ST55 Standart,  E2 Jung AS ect. Underfloor Heating

Simple operation: simply set the temperature and turn on or off TA Raychem Ambient  or Floor Sensing  T2  FloorTemp Plus° Comfort Thermostat Raychem T2 TA oder  Acrobat Reader  TA Technische Daten im PDF-Format:  Bedienung im PDF-Format:    Tech Data: User Manual Englisch, Deutsch, Francais, Nederlands, Norsk, Svenska,  Dansk, Soumi, Polski, Russisch:

Undertile Heating

Into the sub-distributor:

Regulator for carrier rail mounting EB ITS & EB ITU on request:

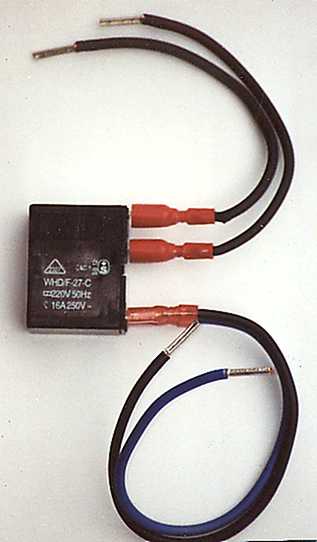

Relay component 16 A: Relay component 16 A, coil voltage 220 V, 50 Hz 1 make-contact element with max. 16 Amp switched current complete with 4 connecting wires With these relay elements the 10A regulator can once again switch the 16A, thereby increasing the maximum space to be heated. Ideal for installation in the 100 x 100 embedded junction box to which the heating mats are connected. This saves the additional laying leads to the meter box and back because of a meter box relay - especially given that this is often not possible later. Not available until November at the earliest!   Area at 10 A: At 120 Watt/m² 20m² possible At 160 Watt/m² 15m²possible At 200 Watt/m² 12m² possible Area at 16 A: At 120 Watt/m² 27m² possible At 160 Watt/m² 20m² possible At 200 Watt/m² 16m² possible Further information on connections etc. Click here:   Undertile Heating



[Conditions of sale and delivery]     [PriceList]     [Picture-PriceList as word.doc]  [Look at Set-Offer]        [Detailed product information Laying tips]

Please read carefully - important for understanding under floor heating:

If 160 Watt/m² floor heating is fitted in a room with floor tiles, the heating only consumes 160 Watt/m² during the warm-up period, e.g. from 18°C to the target floor temperature of 24°C.

At 160 Watt/m² rating this is of course correspondingly faster than 120 Watt/m² - and you save time in the warm-up phase.

Subsequently the floor heating, i.e. from the surface of the floor tiles, only releases approx. 10 Watt/m² heating power into the room for each degree Celsius warmer than the room itself.

Roughly half of the heat is released into the room in the form of infrared heat, i.e. radiant heat.

If the temperature in the room is 22°C and the floor is 24°C, the floor heating would then only release 20 Watt/m² into the room.

If the room is warmed e.g. by the sun to 24°C, the floor heating will release no more heat at all into the room and therefore not consume any more electricity. This is the self-regulation effect of floor heating."

The high percentage of radiant heat in underfloor heating means that the room temperature can easily be turned down by several degrees to e.g. 20°C, and it will still be perceived as pleasantly warm.

A floor temperature of 21°C is felt as warm (the emphasis here is on the feeling of comfort created by under floor heating - the prime source of heating is e.g. radiators).

In this case the floor heating would only release 10 Watt/m² into the room.

With a heating area of e.g. 10 m² and a rating of 10 Watt/m² this would result in electricity costs of 15 cents for 10 hours at a price of 15 cents/kHz.
This assumes adequate thermal insulation beneath the floor base.

In an extreme case, a 160 Watt/m² floor heating system would heat a room from 20°C to 36°C (i.e. one degree per 10 Watts) if it were not limited by the thermostat to approx. 28-29°C.

If the floor plate is thick enough, e.g. 8cm (e.g. heating base from Knauf) and if the customer has access to suitably low-cost storage heating electricity, it is also possible to heat an entire apartment or individual rooms with night storage underfloor heating. The investment costs are relatively low. If the intention is to use the underfloor system as the main source of heating, it is important to use low-cost night storage current.

The consumption costs: i.e. one litre of heating oil provides 10kW/h of chemical energy although only 80-90% is actually used as heat in the flat (boiler, radiation and chimney losses). In the case of electricity, however, 100% is given up to the floor surface. And there are no costs for chimney sweeps, boiler maintenance or fume emission measurement.

Important note: To all people undertaking building and renovation work - reduce your heating costs! BKHW: Block-type thermal power generation Instead of oil or gas heating - use a block-type thermal generation system: it makes economic and ecological sense! Generate your own electrical current! Consume electricity which you have generated yourself and reclaim the oil and ecology taxes for the heating cost consumption! EUR 6 back on every litre! Feed your excess electricity back into the public grid and get extra moneyfor your heating cost budget. Interested in more information?

Undertile Heating

If you are satisfied with the quantity and quality of the information in this website please send us a short email letting us know your opinion!

Click here:Question@soldron.de If you have any questions please give your telephone number: soldroN Heating equipment  Soldron Wärmetechnik Vertriebs GmbH  Ringstraße 17,  97950 Großrinderfeld  Tel/Fax: 09349/ 768  even in the evenings or at the weekend



Raychem homepage:

The low-cost temperature maintaining and frost protection systems
Pipe heat tracing systems Frost protection band from Tyco Raychem

Heating technology: Self-regulating, self-limiting heating bands

Hot-water co-heating
The new HWAT-Plus system was developed specially to meet international requirements. It
is directly available on opening the hot water tap. The economical, reliable and space-saving solution for
new buildings and redevelopment.

Ensure gutters stay free of ice during the winter
To prevent danger and damage caused by snow and ice on gutters and drain pipes. The EisStop system is simple to
fit and has a robust design.

Frost protection and temperature maintenance for pipes.
The WinterGard system can be used in all areas to provide proven and reliable frost protection for pipes, e.g. for
cold water pipes, drain pipes, heating and fire extinguisher pipes

Heating of oil pipes and oil tanks
The ingeniously simple solution prevents heating systems from seizing up. Put an end to blocked oil pipes and congealed oil tanks
in the winter with the OTB system.

No more shovelling during the winter
Ice and snow on ramps, paths, steps and clarifying tanks often lead unnecessarily to dangerous situations
. Reliability even during bad weather is what distinguishes the durable ViaGard system for outdoor surface heating.

Comfort wherever you walk
The floor heating generates cosy and pleasantly warm floors in the kitchen, bathroom, sauna and wherever
marble, ceramic or mosaic tiles are laid. The ready-to-use kit is laid directly on the sub-floor or in the mortar bed.

Our products:
Raychem System-HWAT-Plus, Raychem System-WinterGard, Raychem Syst

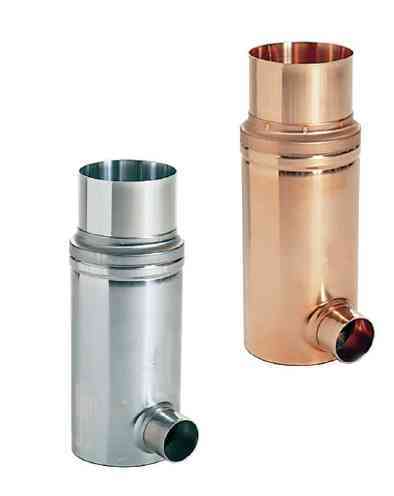

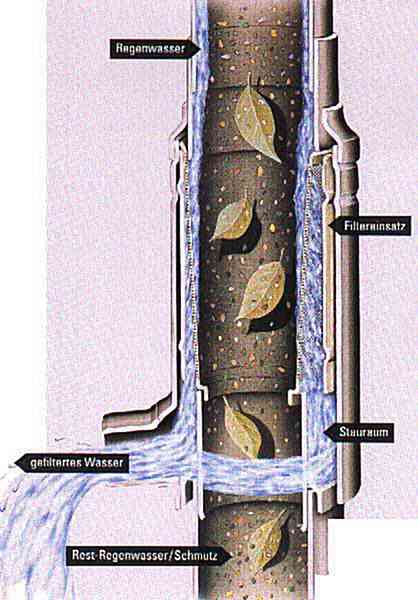

The low-cost rain collectors and drain filters for rain water use!
